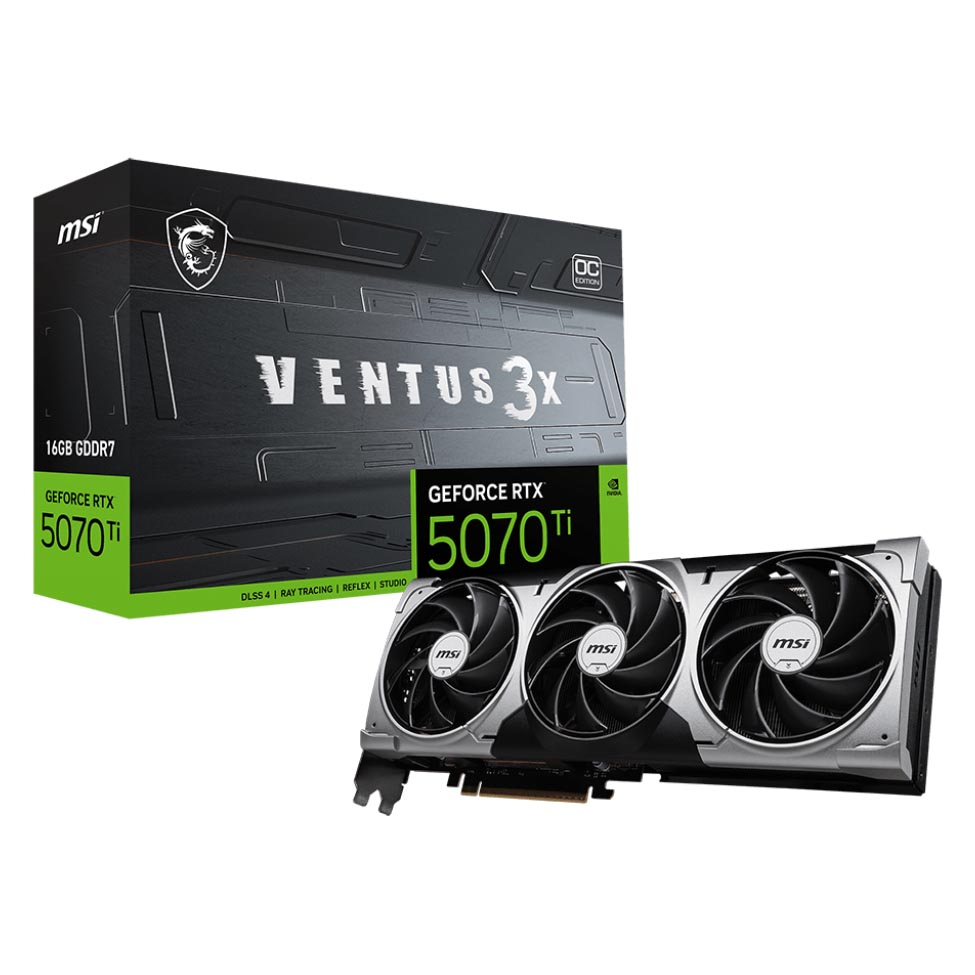

MSI GeForce RTX 5070 Ti Ventus 3X OC GDDR7 16GB

MSI GeForce RTX 5070 Ti Ventus 3X OC GDDR7 16GB

Features
GeForce RTX™ 5070 Ti 16G Ventus 3X OC
Take the Essentials

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

Powered by the NVIDIA Blackwell architecture and DLSS 4
SFF-Ready Enthusiast GeForce Card
Core Clocks: Extreme Performance 2497 MHz (MSI Center), Boost 2482 MHz
TORX Fan 5.0: Fan blades linked by ring arcs work to stabilise and maintain high-pressure airflow.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipes feature a square design to maximise contact with the GPU baseplate for optimal thermal management.

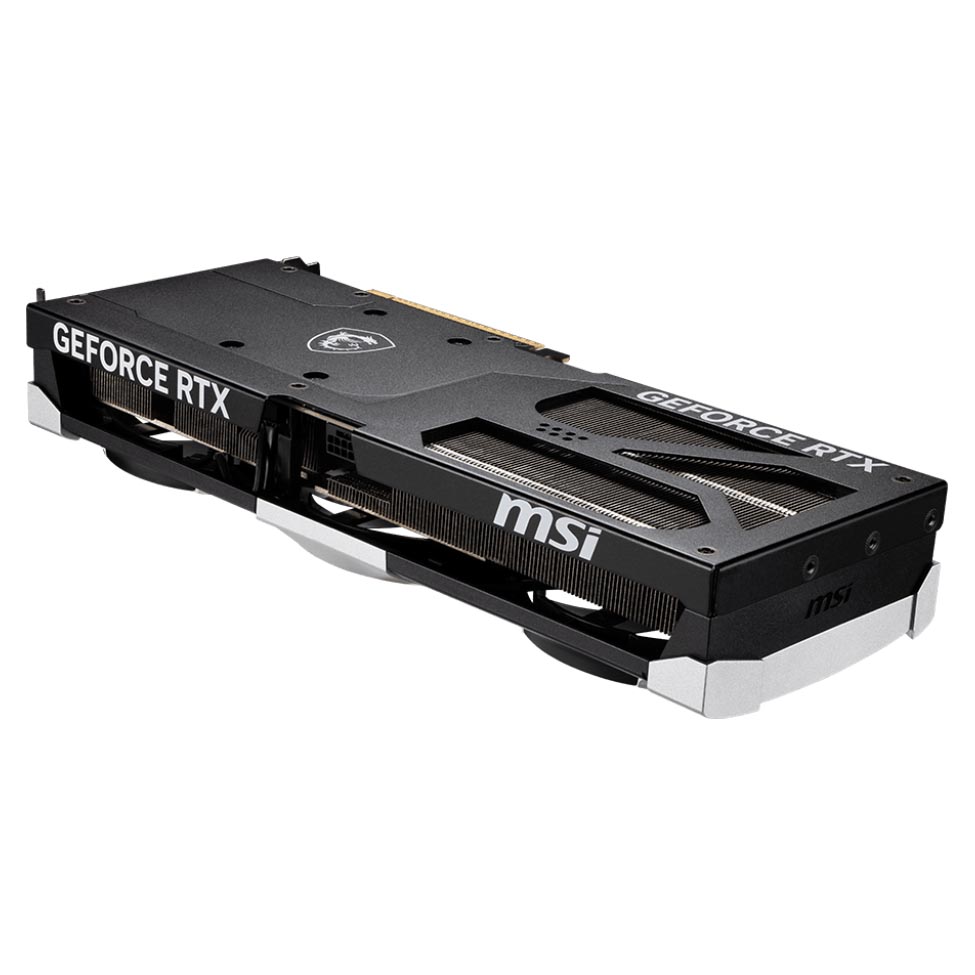

Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimise MSI products in real-time.
Afterburner software takes full control with the most recognised and widely used graphics card overclocking software in the world.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores – Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors – Optimised for neural shaders
Fourth-Gen Ray Tracing Cores – Built for Mega Geometry
AI-Enhanced Graphics and Performance – NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness – NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics – Full ray tracing with neural rendering
Digital Humans and AI Assistants – NVIDIA ACE
Accelerate Your Creativity – NVIDIA Studio creator tools and technology
Enhance Any Video with AI – NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability – NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
The Ultimate Gaming Display Technologies – NVIDIA G-SYNC
RTX. It’s On.
The Ultimate in Ray Tracing and Al

RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionising the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge Al features like DLSS Multi Frame Generation.

NVIDIA DLSS 4
Supreme Speed. Superior Visuals. Powered by AI.

DLSS is a revolutionary suite of neural rendering technologies that uses Al to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA Al supercomputer in the cloud constantly improving your PC’s gaming capabilities.

Full Ray Tracing with Neutral Rendering
Game-Changing Realism

The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.

NVIDIA Reflex 2
Compete at Warp Speed

Reflex technologies optimise the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input.

RTX AI PCs
NVIDIA Powers the World’s Al and Yours

Upgrade to advanced Al with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in Al processors, you get world-leading Al technology powering your Windows PC.

Creators
Your Creative Al-Advantage

NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for Al-assisted creative workflows.

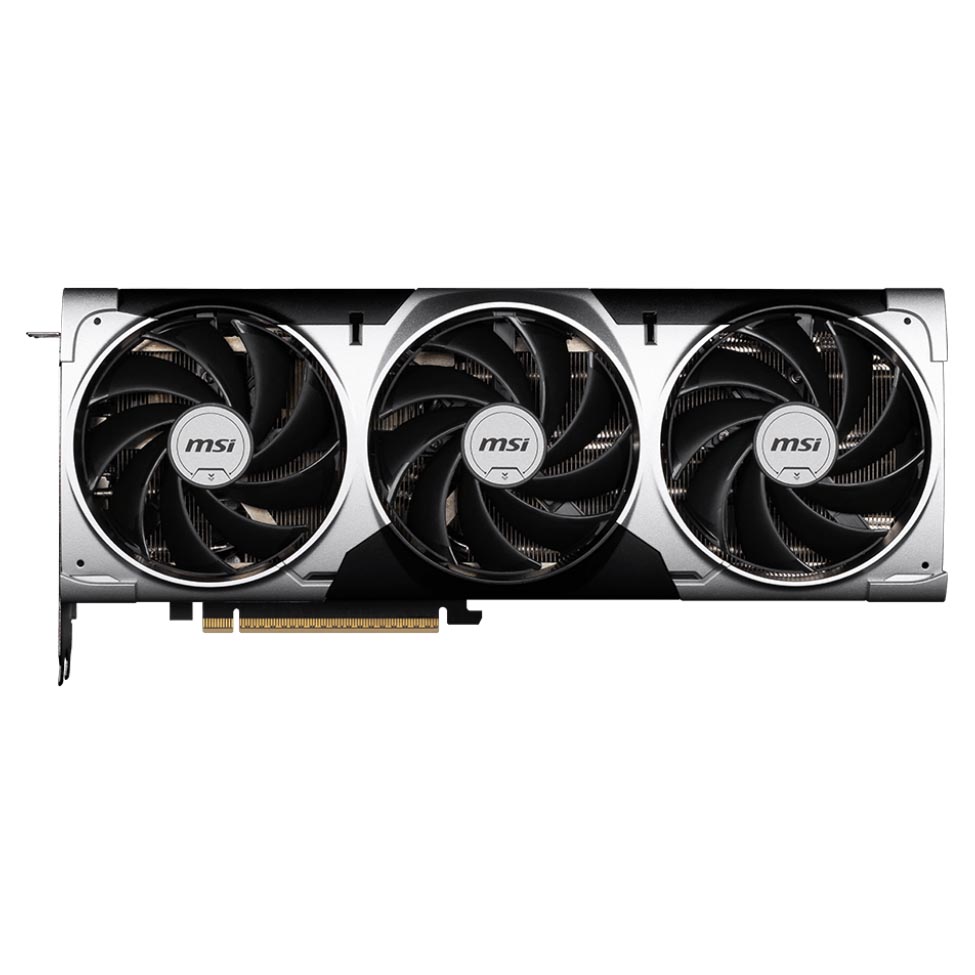

Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.

Specifications
Model Number G507T-16V3C
Marketing Name GeForce RTX™ 5070 Ti 16G Ventus 3X OC
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070 Ti
Interface PCI Express® Gen 5
Core Clocks Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz
CUDA® Cores 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit

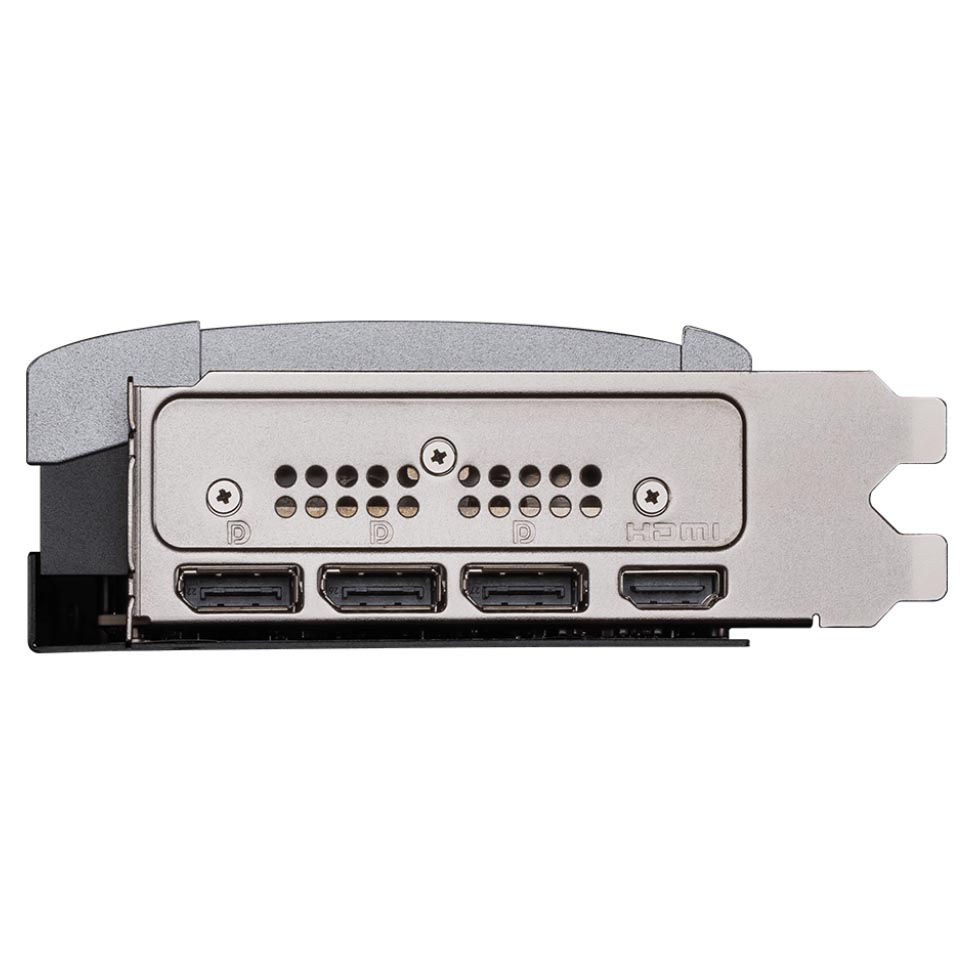

Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480 Hz or 8K 120 Hz with DSC, Gaming VRR, HDR)
HDCP Support Yes
Power Consumption 300 W

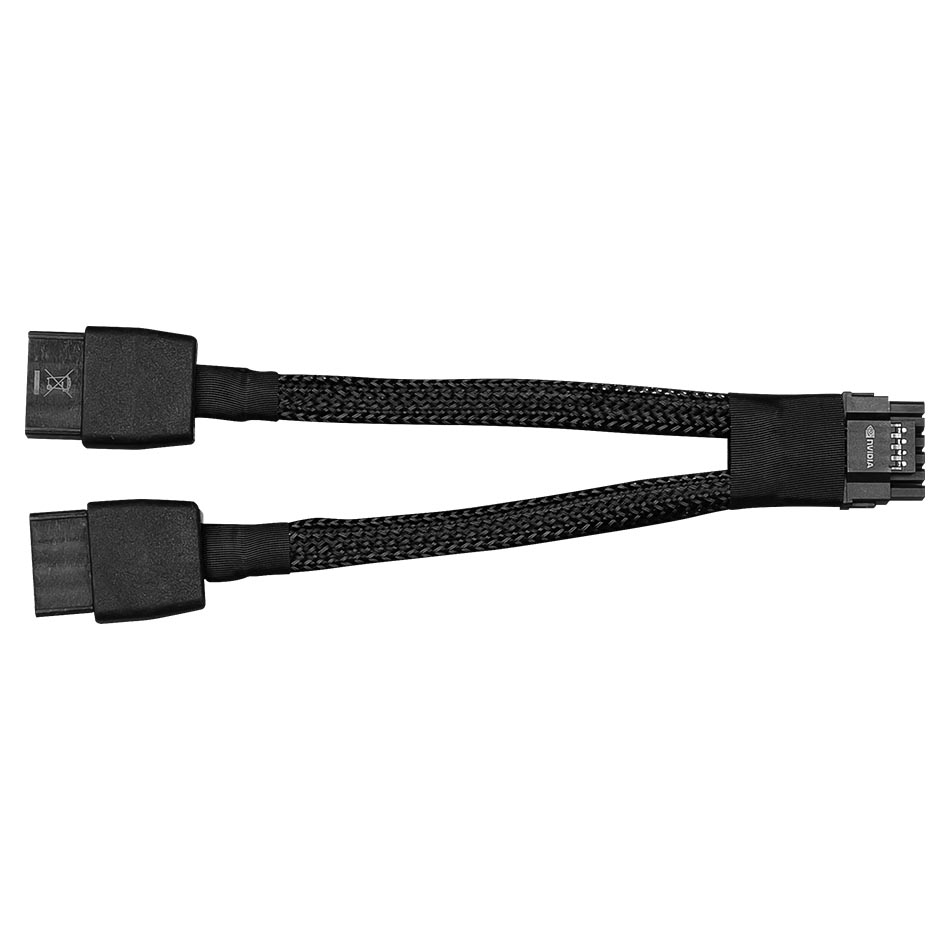

Power Connectors 16-pin x 1
Recommended PSU 750 W
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card) 1073 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® Technology Yes
Digital Maximum Resolution 7680 x 4320

Reinforced Metal Structure

The inside of the graphics card includes an additional metal structure that enhances stability and durability.

DrMOS Enhanced Efficiency

DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Effective Thermal Padding

High-quality clay-based thermal pads offer additional heat dissipation for critical board components.

Fuse Strengthened Defences

Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

2 oz Copper Improved Reliability

A thickened copper layer inside the PCB increases conductivity which improves heat dissipation and reliability.

Your Support Character

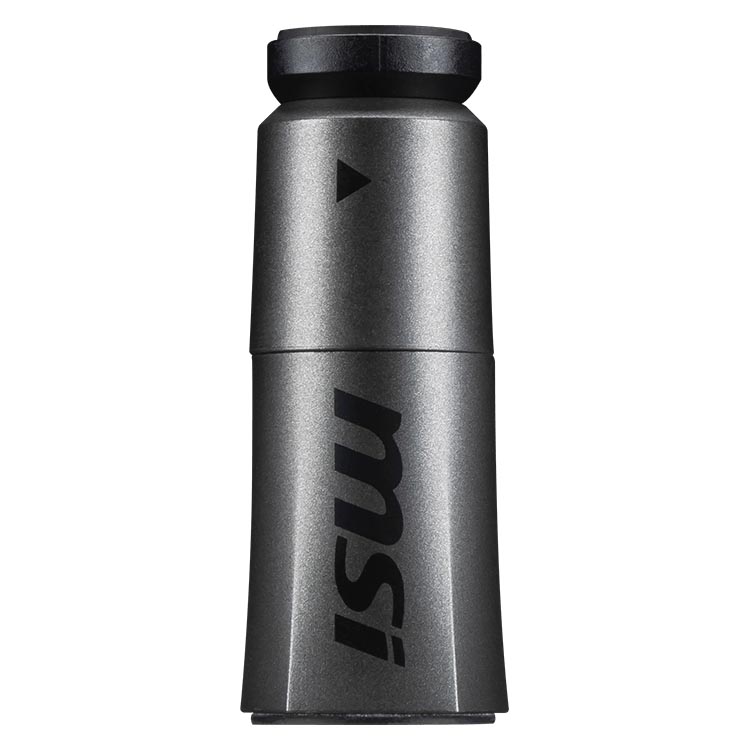

A bundled support stand can be attached to the PC case to hold up the graphics card. *Please check case compatibility before installation, as the stand may not fit all cases.

*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

MSI Center
Bringing It All Together

MSI’s exclusive MSI Center software empowers you to maximise your MSI products. Monitor, tweak, and optimise in real-time with just a few clicks. One of its standout features, AI Tuning, intelligently adjusts your system to meet AI-orientated requirements.

Afterburner
Precision Control, Unlimited Power

MSI Afterburner is the world’s leading graphics card overclocking software, offering complete control and real-time system monitoring. It’s free and compatible with most graphics cards.

MSI APP Player
Seamless Gaming Experience

Developed under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.

Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
