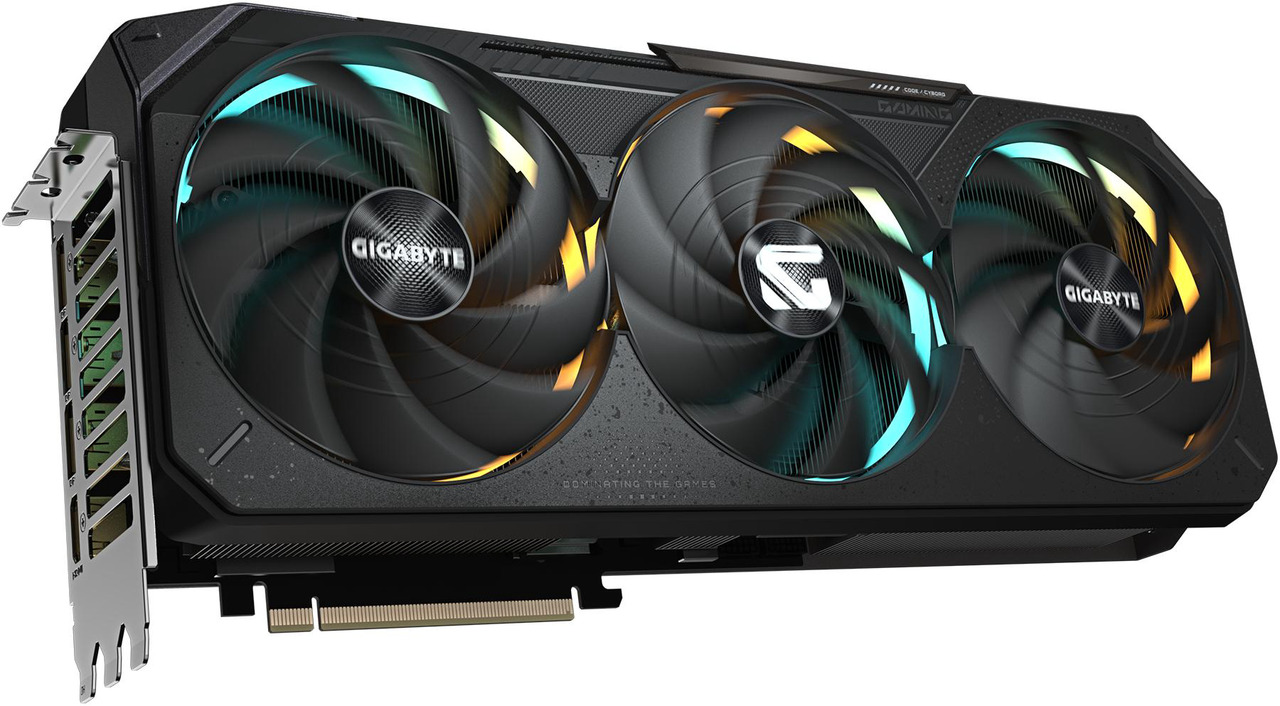

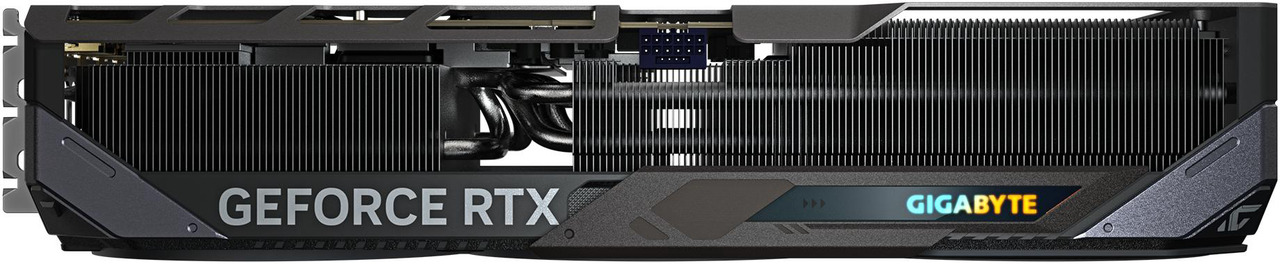

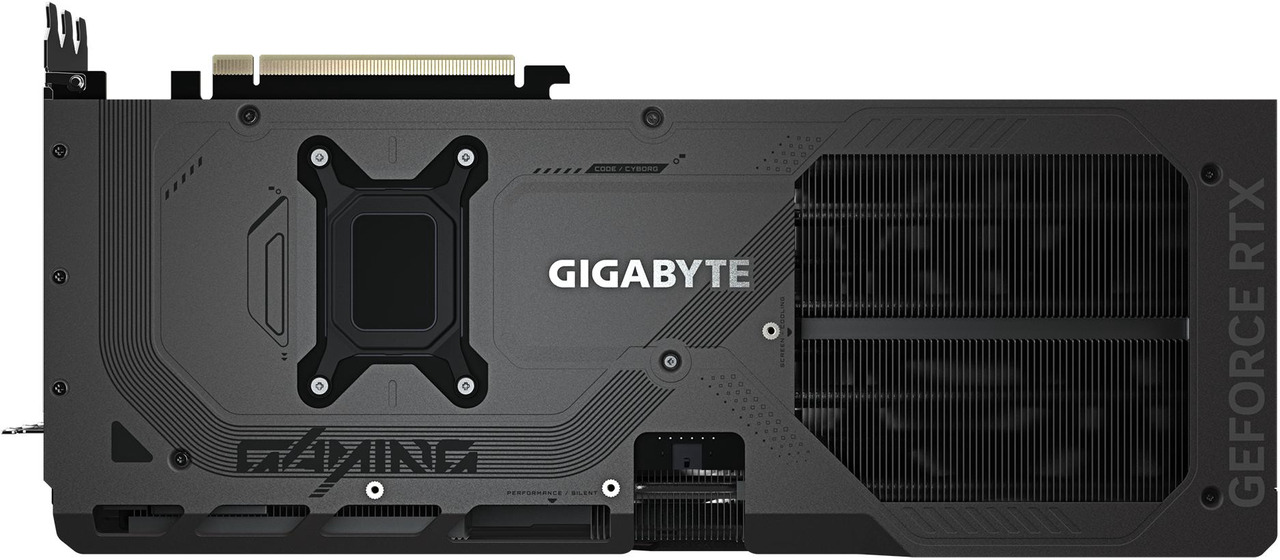

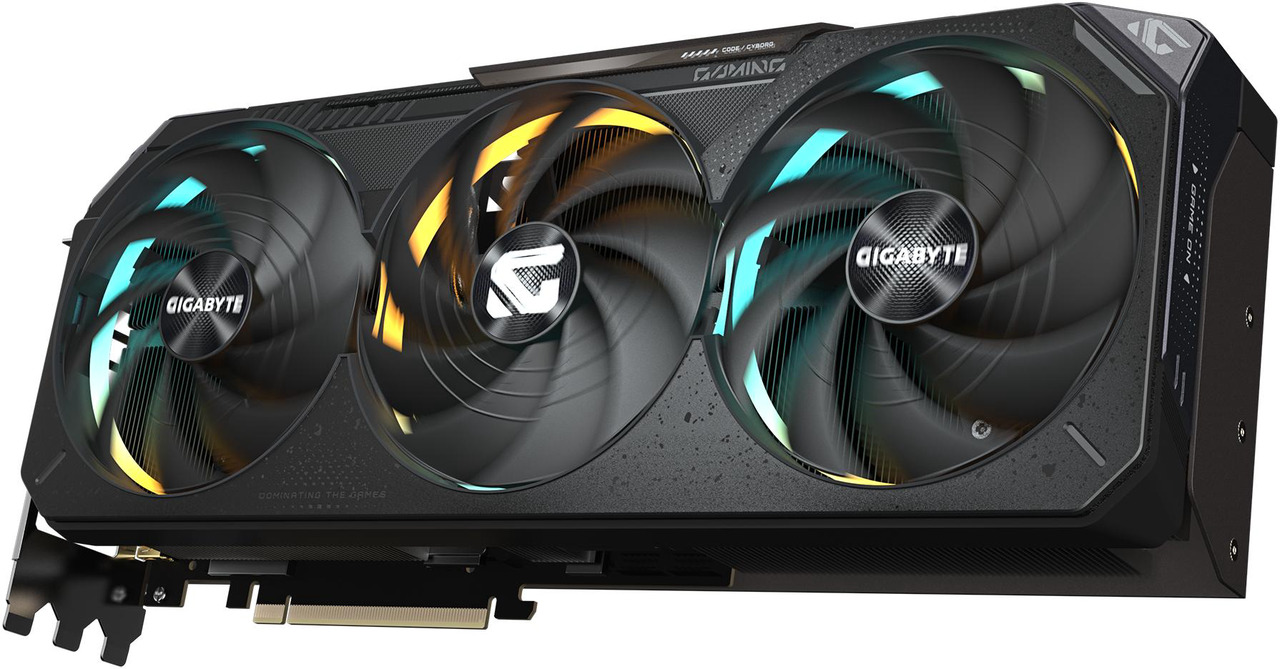

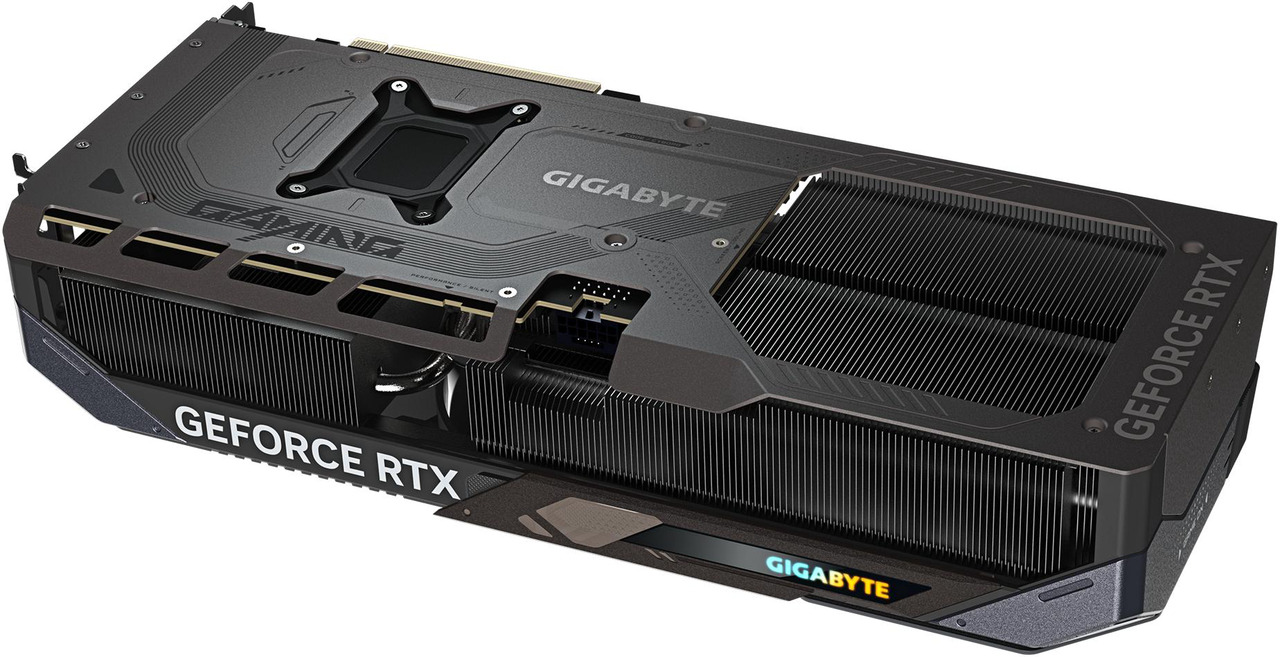

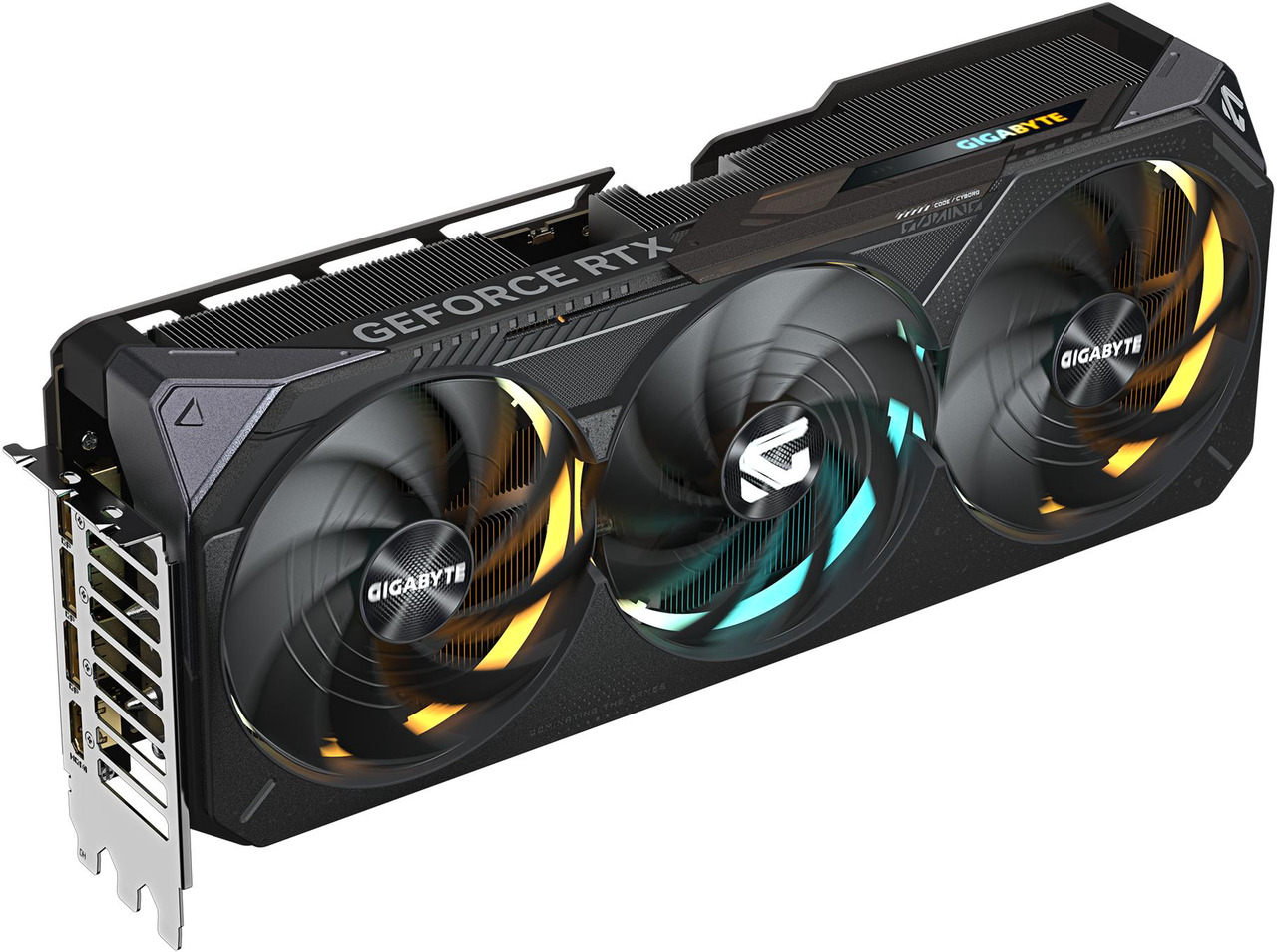

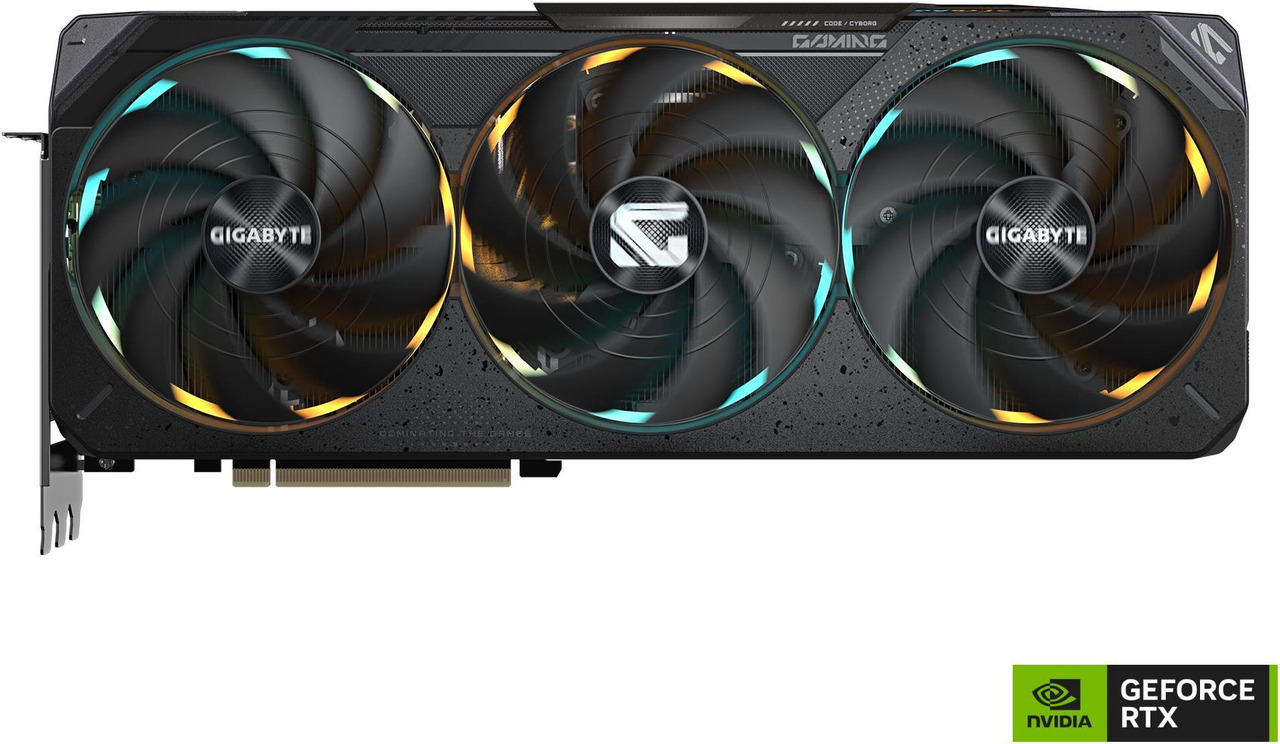

Nvidia RTX 5080

Nvidia RTX 5080

Model
Brand GIGABYTE
Series Gaming
Model GV-N5080GAMING OC-16GD
Part Number GV-N5080GAMING OC-16GD
Interface
Interface PCI Express 5.0
Chipset
Chipset Manufacturer NVIDIA
GPU Series NVIDIA GeForce RTX 50 Series
GPU GeForce RTX 5080
Memory
Effective Memory Clock 32 Gbps
Memory Size 16GB
Memory Interface 256-Bit
Memory Type GDDR7
3D API
OpenGL OpenGL 4.6

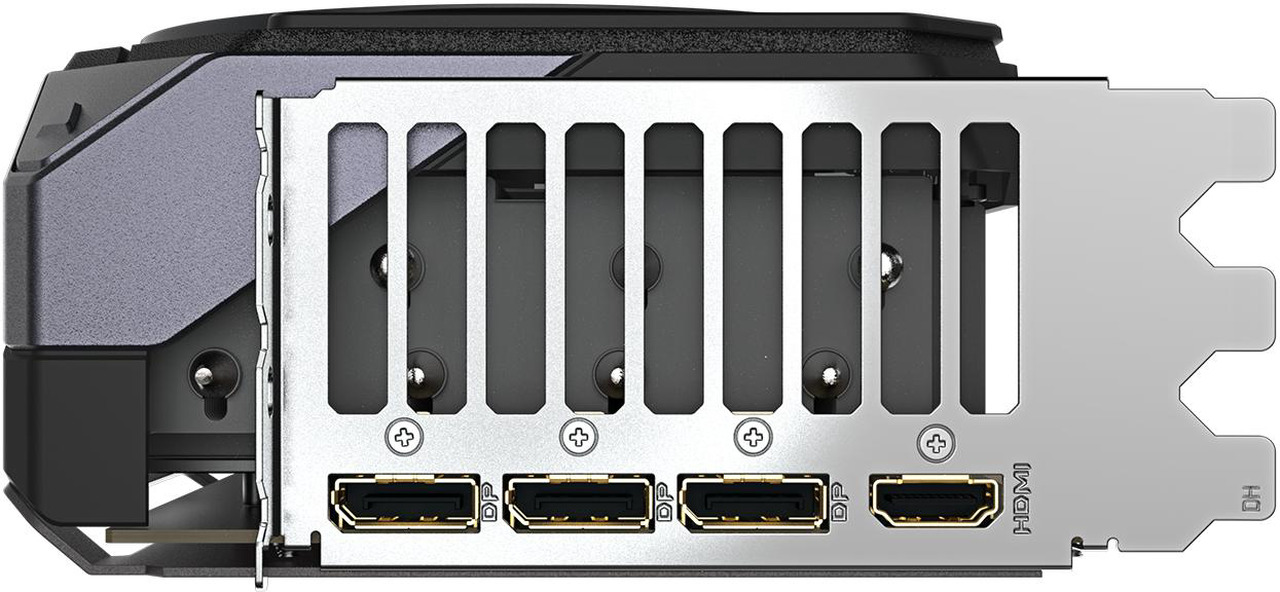

Ports
Multi-Monitor Support 4
HDMI 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a
Details
Color Black
Max Resolution 7680 x 4320
SLI Support No
Virtual Reality Ready Yes
Thermal Design Power 360W
Recommended PSU Wattage 850W
Power Connector 1 x 16-Pin
HDCP Ready Yes
Form Factor & Dimensions
Form Factor ATX
Max GPU Length 340 mm
Card Dimensions (L x H) 340 x 140 x 70 mm
Packaging
Package Contents 1. VGA manual
2. Warranty notice
3. 1x 12V-2×6 to 3x PCIe 8pin adapter
4. Versatile VGA holder
5. Versatile VGA holder manual

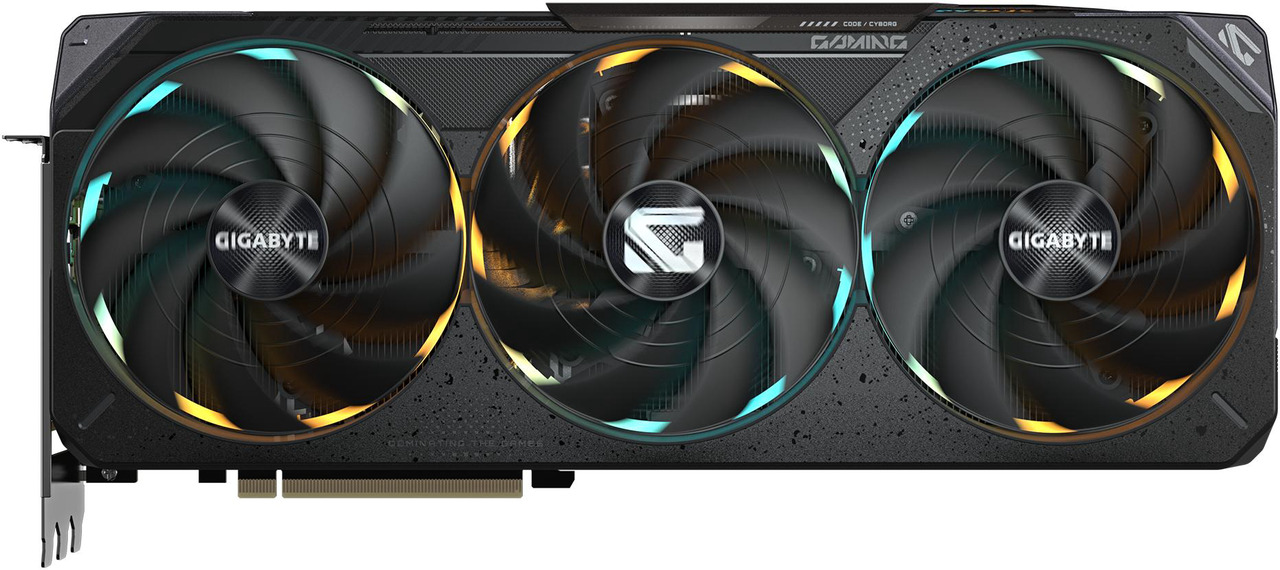

ACTIVE COOLING DESIGN – HAWK FAN
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
