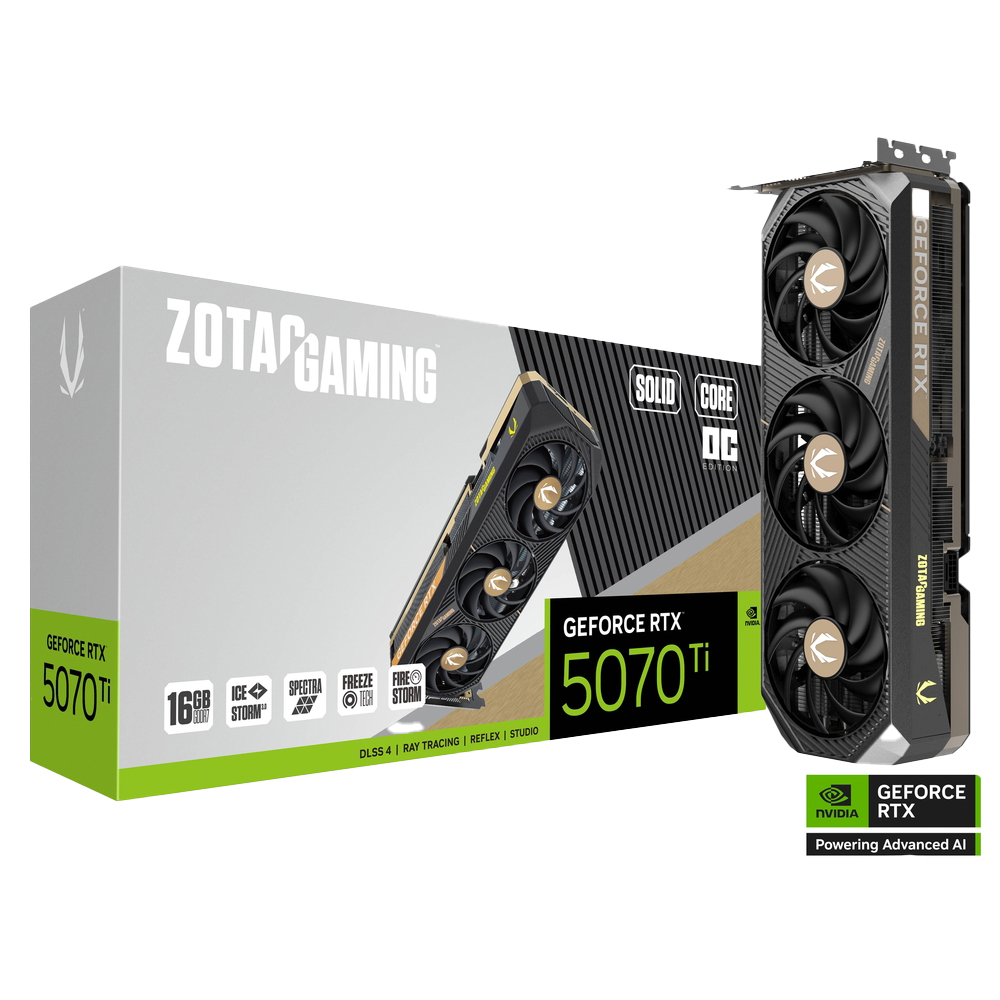

ZOTAC Gaming GeForce RTX 5070 Ti Solid Core OC GDDR7 16GB

ZOTAC Gaming GeForce RTX 5070 Ti Solid Core OC GDDR7 16GB

Model Number ZT-B50710J2-10P
GPU NVIDIA GeForce RTX 5070 Ti GPU
CUDA cores 8960
Video Memory 16 GB GDDR7
Memory Bus 256-bit
Engine Clock 2452 MHz
Memory Clock 28 Gbps
PCI Express PCI Express 5.0 x 16

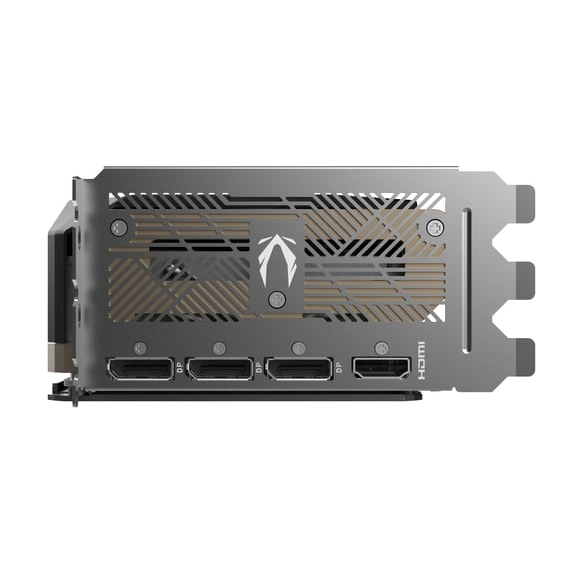

Display Outputs 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480 Hz or 8K 165 Hz with DSC)
1 x HDMI® Connector (Supports 4K 480 Hz HDR or 8K 120 Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)
HDCP Support 2.3
Multi Display Capability Quad Display
Recommended Power Supply 750 W
Power Consumption 300 (High power consumption, please carefully read your PSU manual before installation.)
Power Input 1 x 12v-2 x 6 power input
DirectX Microsoft DirectX® 12 Ultimate
OpenGL 4.6
Cooling IceStorm 3.0
Slot Size 2.5
SLI No
Supported OS Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Card Length 303.5 mm x 115.8 mm x 55.7 mm / 11.9″ x 4.6″ x 2.2″

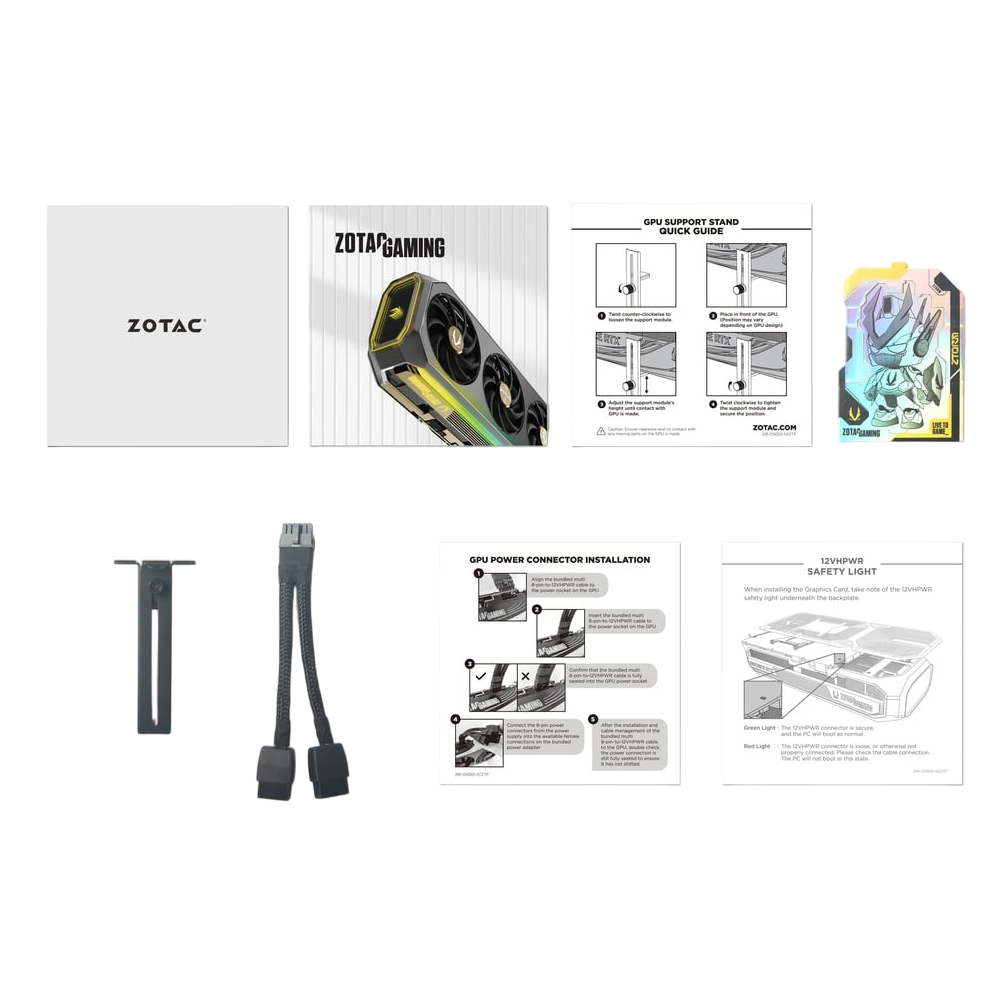

Accessories User Manual
2 x 8-pin-to-16-pin cable
GPU Support Stand

Features
ZOTAC Gaming GeForce RTX 5070 Ti Solid Core OC
To Gaming and Beyond

The ZOTAC GAMING GeForce RTX™ 5070 Ti SOLID CORE OC is a high-performance graphics card that excels in both gaming and content creation with a 2.5 slot design. Featuring NVIDIA‘s cutting-edge Blackwell architecture and DLSS4, and structural enhancements like an all-metal mid-frame, the SOLID CORE OC is the perfect blend of high performance and build flexibility.

Powered by the NVIDIA Blackwell architecture and DLSS 4
IceStorm 3.0 Advanced Cooling
Vapour Chamber
BladeLink Fans
Reinforced Metal Mid-Frame
FREEZE Fan Stop, Active Fan Control
SPECTRA RGB Lighting
Metal Backplate
Bundled with GPU Support Bracket
12V-2×6 Safety Light
All-new FireStorm Utility
Redefining Gaming and Style
ZOTAC reimagines one of the core essentials of a performance PC, as the centrepiece of an entire setup. Blending design, performance, and airflow dynamics, the ZOTAC GAMING GeForce RTX 50 series GPUs blur the line between tech and art.

Elegant
Distinguished
Unrivalled
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores – Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors – Optimised for neural shaders
Fourth-Gen Ray Tracing Cores – Built for Mega Geometry
AI-Enhanced Graphics and Performance – NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness – NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics – Full ray tracing with neural rendering
Digital Humans and AI Assistants – NVIDIA ACE
Accelerate Your Creativity – NVIDIA Studio creator tools and Technology
Enhance Any Video with AI – NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability – NVIDIA app with Game Ready and Studio Drivers
The Ultimate Gaming Display Technologies – NVIDIA G-SYNC
RTX. It’s On.
The Ultimate in Ray Tracing and AI

RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionising the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

NVIDIA DLSS 4
Supreme Speed. Superior Visuals. Powered by AI.

DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.

Full Ray Tracing with Neural Rendering
Game-Changing Realism

The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.

Solid – The Ultimate GPU
No Frills, All Action

With a stealthier aesthetic and engineered for durability and performance, the ZOTAC GAMING SOLID is for those who demand pure performance over anything else. A solid design, powerful cooling, and robust durability with minimal distractions.

A Powerful Cooling System
Pass-through structural housing
Full-length heatsink
Free flowing air movement
Vapour Chamber

Up to 34 % larger than previous models for even more robust heat extraction.

Composite Heatpipes

Thicker envelope
Multi-channel working fluid
Grooved wick
BladeLink Fans

Optimised airflow intake
Reinforced structure rigidity
Noise Redefined
Every aspect of the ZOTAC GAMING GeForce RTX 50 Series is optimised to minimise noise, lowering decibels and heightening immersion.

Active Fan Control 2.0

Control each fan independently for maximum noise and temperature control.
Freeze Fan Stop

Fans remain frozen when idle.

Stronger Durability
As the most important component in the PC, the ZOTAC GAMING 50 Series is built to last and perform.

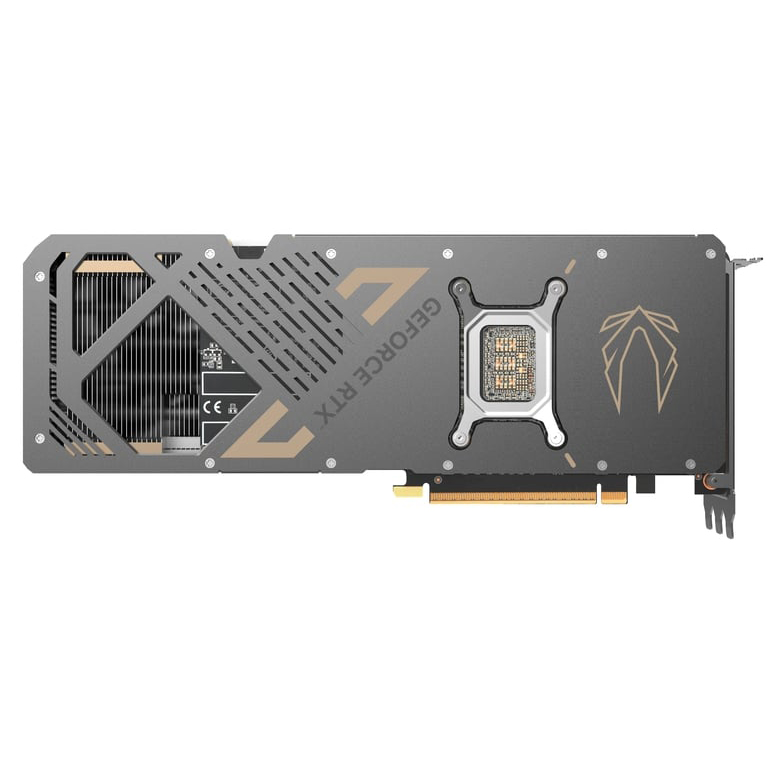

Solid Metal Backplate

Retention Bracket

Enhances cold-plate to GPU contact distribution for more effective heat transfer

Reinforced Metal Mid-Frame

Integrated into the overall design housing from end to end for increased rigidity

Power Stability

Shorter Footprint

Shorter than our previous flagship models but even more powerful, the ZOTAC GAMING 50 Series GPUs might just give you that extra legroom your PC build needed.

4090 AMP EXTREME (355.5mm / 14 in.) vs 5090 SOLID (329.7mm / 13in)
Intricate Lighting
Enable vibrant LED lighting and colours
Unique animated mode
SPECTRA Link

Take more control with the graphics card RGB lighting with SPECTRA Link. Connect the graphics card to a compatible motherboard with an RGB port via SPECTRA Link and let your motherboard lighting software sync the graphics card lighting with the rest of your system.

*Functionality may vary by GPU model

A Refreshed Look
The ZOTAC GAMING FireStorm Utility has a new fresh coat of paint for the 50 series, matching the elegance of our new design. FireStorm comes with a host of tuning and monitoring options that include clock speeds, GPU memory frequencies, voltage, fan speed, fan curve settings, and SPECTRA RGB lighting effects.

NVIDIA Reflex 2
Compete at Warp Speed

Reflex technologies Optimise the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest Mouse input.

RTX AI PCs
NVIDIA Powers the World’s AI. and Yours.

Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.

Creators
Your Creative AI-Advantage

NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

NVIDIA Broadcast – Your AI-Powered Home Studio

Take your livestreams, voice chats, and video calls to the next level with AI- enhanced voice and video. Remove distracting background noise, customise your background, and more at the touch of a button.

RTX Video – Upgrade Your Video Viewing

RTX Video Super Resolution and HDR uses AI to transform your videos in Chrome, Edge, or Firefox-automatically sharpening details and wiping out compression artefacts. Enjoy stunning clarity in up to 4K.

RTX Remix – Remaster The Classics

RTX Remix allows modders to easily capture game assets, enhance materials with AI tools, and create stunning RTX remasters with ray tracing and DLSS.

Video Editing – Speed Meets Creativity

Harness the power of the ninth-gen NVIDIA Encoder (NVENC) for blazing-fast video exports and AI-driven effects in DaVinci Resolve, Adobe Premiere Pro, and more.

Additional Features and Benefits
Game Ready and Studio Drivers

GeForce Game Ready and Studio Drivers deliver the best experience for your favourite games. They’re finely tuned in collaboration with developers and extensively tested across thousands of hardware configurations for maximum performance and reliability.

NVIDIA App

The essential companion for PC gamers and creators. Keep your PC up to date with the latest NVIDIA drivers and technology. Optimise games and applications with a new unified GPU control center, and discover the latest NVIDIA apps.

NVIDIA G-SYNC

NVIDIA G-SYNC® is a suite of the ultimate display technologies. They offer enhanced motion clarity, smooth tear-free immersion, ultra-high frame rates, and more.

Virtual Reality

The highest-performance graphics deliver the smoothest, most immersive VR experiences.
